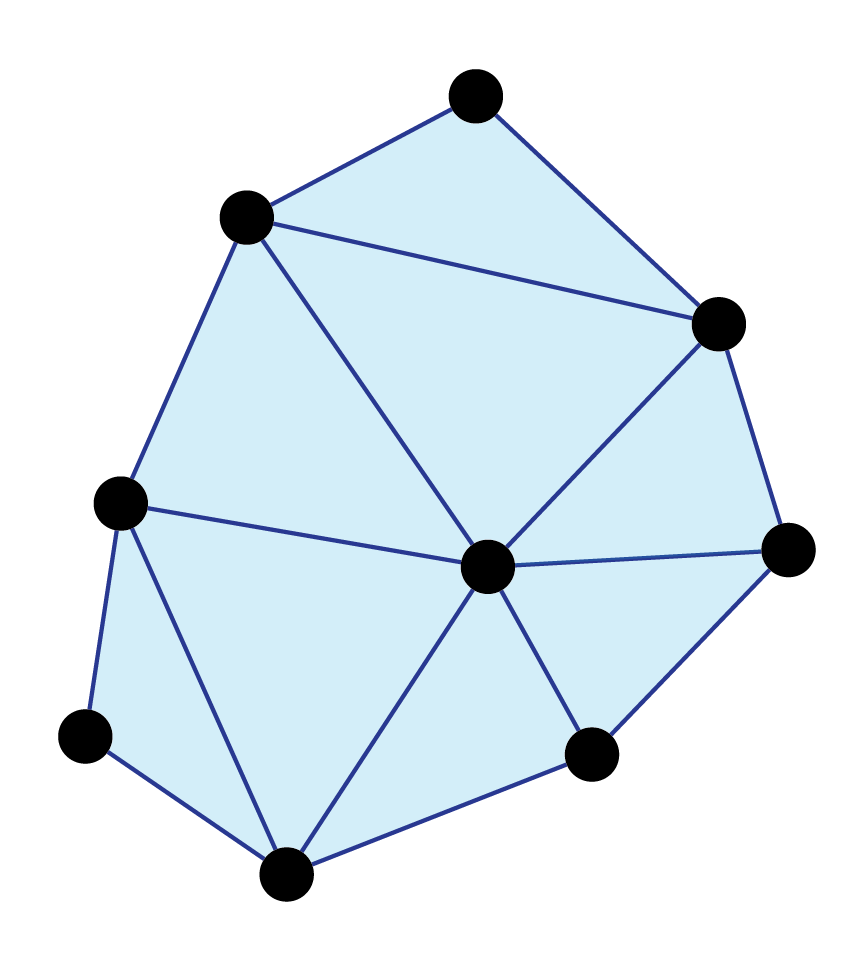

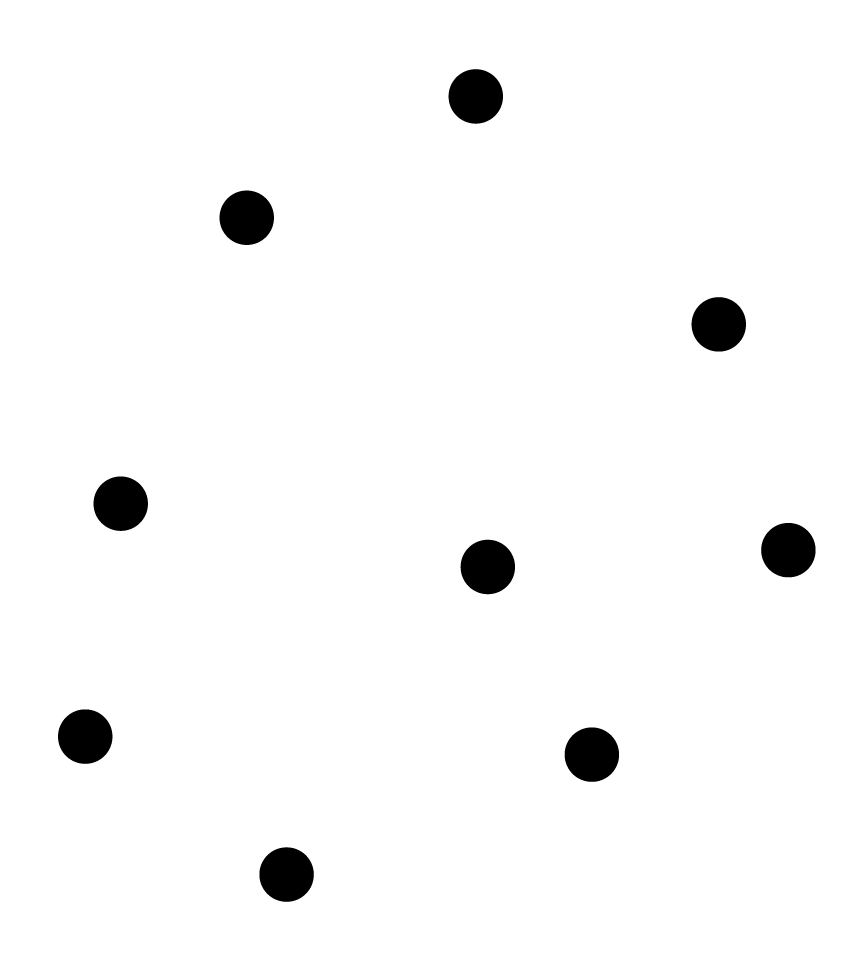

• a “Mesh” is a set \(M = (V, E, F)\) where

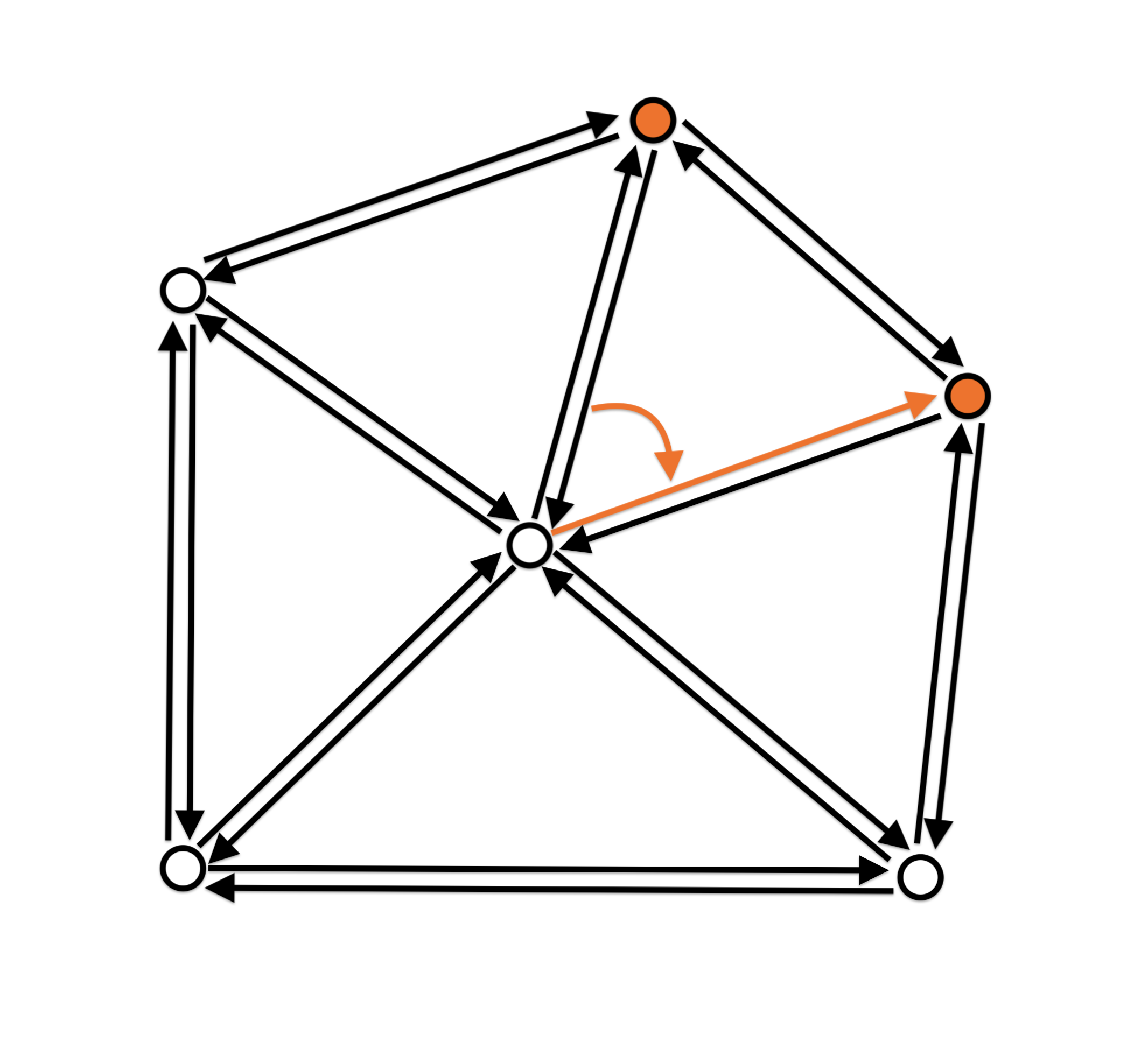

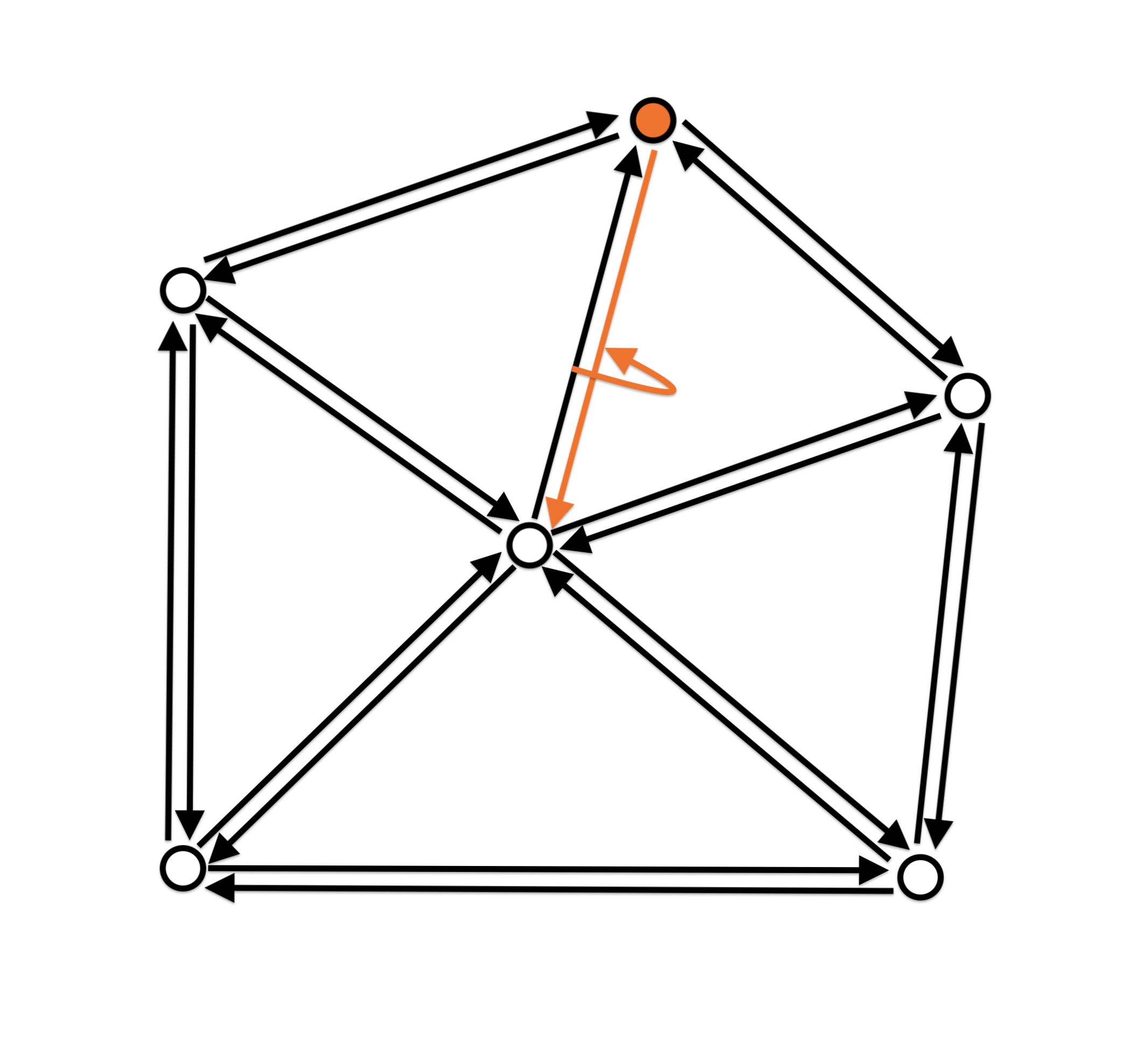

• One-ring neighbourhood traversal

• One-ring neighbourhood traversal

• One-ring neighbourhood traversal

• One-ring neighbourhood traversal

• Define with default traits

  //points, normals in R^3, single precision (floats)
  //colors in N^3 (integer RGB)
  typedef OpenMesh::TriMesh_ArrayKernelT<>  MyMesh;
  MyMesh mesh;

• Define with customized traits (doc reference)

 struct TriTraits : public OpenMesh::DefaultTraits
 {
   /// Use double precision points
   typedef OpenMesh::Vec3d Point;
   /// Use double precision Normals
   typedef OpenMesh::Vec3d Normal;
   /// Use RGBA Color
   typedef OpenMesh::Vec4f Color;
 };
 typedef OpenMesh::TriMesh_ArrayKernelT<TriTraits>  MyMesh;
 MyMesh mesh;

• Adding a vertex

   MyMesh mesh;
   ...
   OpenMesh::VertexHandle vh = mesh.add_vertex(MyMesh::Point(x,y,z));
   //shorter version (using C++11 and assuming that
   //your Point type can be cast from an initializer-list)
   auto vh2 = mesh.add_vertex({x,y,z});

• Adding a face

   MyMesh mesh;
   OpenMesh::VertexHandle vh0, vh1, vh2;
   ...
   OpenMesh::FaceHandle fh = mesh.add_face(vh0, vh1, vh2);
   //shorter C++11 version
   auto fh2 = mesh.add_face(vh0, vh1, vh2);
   //NOTE: This automatically adds the relevant edges

• Reading vertex positions

   MyMesh mesh;
   OpenMesh::VertexHandle vh;
   ...
   MyMesh::Point pos = mesh.point(vh);

• Modifying vertex positions

   MyMesh mesh;
   OpenMesh::VertexHandle vh;
   MyMesh::Point new_pos;
   ...
   mesh.set_point(vh, new_pos);

• How to modify all vertices?

 MyMesh mesh;
 //vertex iterators
 MyMesh::VertexIter v_it, v_begin, v_end;
 //range of iterators
 v_begin = mesh.vertices_begin();
 v_end = mesh.vertices_end();
 //iterate over all vertices
 for(v_it = v_begin; v_it != v_end; ++v_it){
     //get vertex handle
     OpenMesh::VertexHandle vh = *v_it;
     //process the vertex
     DoSomethingWithVertex(vh);
 }

• In practice, you can us the C++11 “ranged-based for loops”

 MyMesh mesh;

 for(auto vh: mesh.vertices()){
    //same loop body
 }

• Iterating over all elements

 MyMesh mesh;

 for(auto fh: mesh.faces()){
    ...
 }

 for(auto fh: mesh.edges()){
    ...
 }

 for(auto fh: mesh.halfedges()){
    ...
 }

• Iterate over all neighbouring vertices

MyMesh mesh;
OpenMesh::VertexHandle vh;
//circulator around a vertex
for(VertexVertexIter vv_it = mesh.vv_iter(vh); vv_it.is_valid(); vv_it++){
    //process vertex neighbor
    do_something_with_vertex(*vv_it);
}

• Reminder: “one-ring neighborhood”
• Doc ref: iterators & circulators

• The circulators around a vertex are:
• VertexVertexIter: iterate over all neighboring vertices.
• VertexIHalfedgeIter: iterate over all incoming halfedges.

• for(auto vih_it = mesh.vih_iter(v); vih_it.is_valid(); vih_it++){ ... }

• VertexOHalfedgeIter: iterate over all outgoing halfedges.

• for(auto voh_it = mesh.voh_iter(v); voh_it.is_valid(); voh_it++){ ... }

• VertexEdgeIter: iterate over all incident edges.

• for(auto ve_it = mesh.ve_iter(v); ve_it.is_valid(); ve_it++){ ... }

• VertexFaceIter: iterate over all adjacent faces.

• for(auto vf_it = mesh.vf_iter(v); vf_it.is_valid(); vf_it++){ ... }

• The circulators around a face are:
  • FaceVertexIter: iterate over the face’s vertices.
  • FaceHalfedgeIter: iterate over the face’s halfedges.
  • FaceEdgeIter: iterate over the face’s edges.
  • FaceFaceIter: iterate over all edge-neighboring faces.

• Query entity number

MyMesh mesh;
unsigned int n1 = mesh.n_vertices(),
n2 = mesh.n_faces(),
n3 = mesh.n_edges(),
n4 = mesh.n_halfedges();

• Template based dynamic properties

MyMesh mesh;
//define a property type, e.g edge property in float
typedef OpenMesh::EPropHandleT<float> edge_length;
//add the property to mesh and name it(optional)
mesh.add_property(edge_length, "edge length");
OpenMesh::EdgeHandle eh;
float L, LL;
//write to the property
mesh.property(edge_length, eh) = L;
//read the property
LL = mesh.property(edge_length, eh);
//remove the property
mesh.remove_property(edge_length);

• Getting the connectivity information

MyMesh mesh;
HalfedgeHandle heh;
VertexHandle   vh_from  = mesh.from_vertex_handle(heh),
VertexHandle   vh_to    = mesh.to_vertex_handle(heh);
FaceHandle     fh       = mesh.face_handle(heh);
HalfedgeHandle heh_next = mesh.next_halfedge_handle(heh);
HalfedgeHandle heh_prev = mymesh.prev_halfedge_handle(heh);
HalfedgeHandle heh_opp  = mymesh.opposite_halfedge_handle(heh);

• halfedges are at the core of the OpenMesh data structure

• Using the integrated vector operations

MyMesh::Point x, y, a, b, c, d;
...
//arithmetic operations
a = x + y;
b = x - y;
c = x * 0.5;
d = y / 3.0;
...

• Using the integrated vector operations

MyMesh::Point x, y, a, b, c, d;
...
//dot product
Scalar dot = OpenMesh::dot(x, y); //Scalar dot = x | y;
//compute the norm
Scalar norm = x.norm();
//normalize
a = x.normalize();
//cross product
MyMesh::Point cross = OpenMesh::cross(x, y); //Scalar b = x % y;
...

// Updates face normals and populates them
mesh.update_face_normals();

// Returns normal vector associated with face handle fh
mesh.normal(fh);

// May specify direction of rotation, e.g.,
for(auto voh_it = mesh.voh_ccwbegin(); voh_it.is_valid(); ++voh_it) {
  ...
}

// See if something is on the boundary
mesh.is_boundary(vh);

• Nice overview and brief code examples in docs here
• Code for calc_edges_weights() and calc_vertices_weights() are great code examples
• Inheritance: KernelT <- PolyMeshT <- TriMeshT
• PolyMesh iterators/circulators

• There’s a lot of stuff that you can do with OpenMesh
• It’s normal not to know everything at first
• Some advice: use auto-completion/suggestions from IDE to see all the available methods
• Remember to use the official documentation: http://www.openmesh.org
